Ohm's Law is one of those fundamental theories in electrical engineering and physics that define the relationship of voltage, current, and resistance in an electrical circuit. This is the main law in understanding how electrical circuits work and thus is a core thing for anyone who wants to study electronics or work with an electrical system.
In its simplicity, Ohm's Law provides an explanation of the extent to which electric current is passing through a conductor and how one can control it or measure the voltage passing through it. It derived its name from a German physicist, Georg Simon Ohm, who, in the 1820s, devised this law.
To better understand Ohm's Law, let's define what it is. Ohm's Law is the rule that states a current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them. What that means is that with increased voltage, you will have increased current, and conversely, with an increase in resistance, the current decreases.

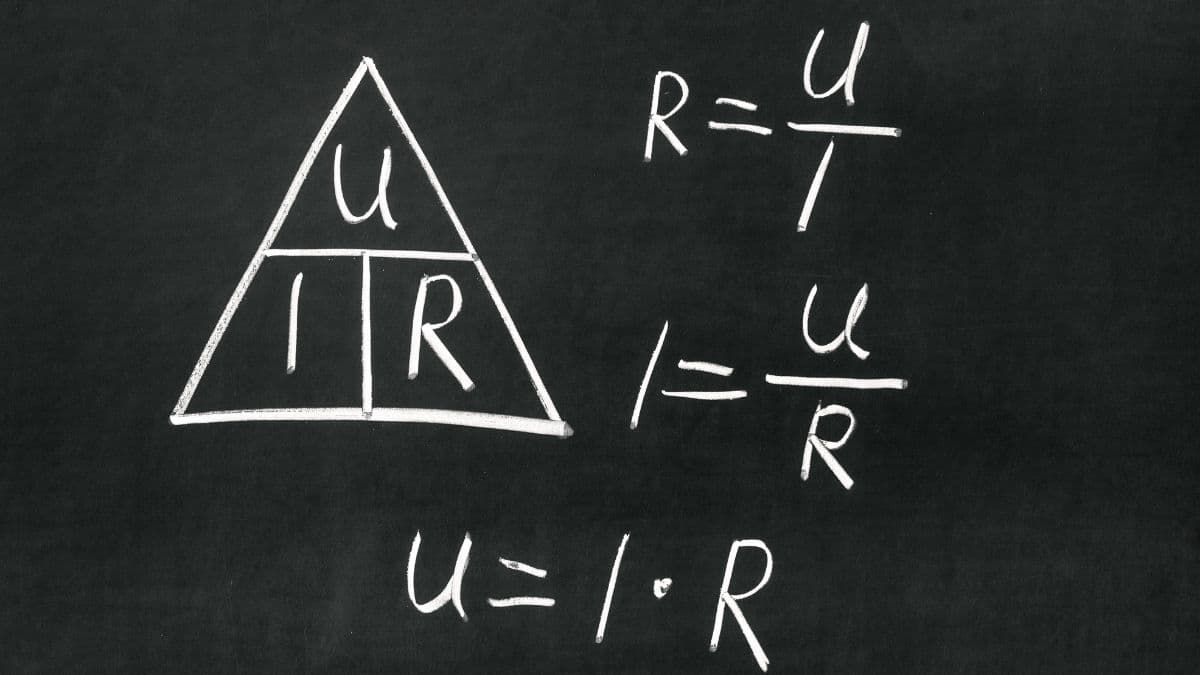

<h2 dir="ltr">Formula of Ohm's Law:</h2>
&bull; [ V = I &times; R ]
Where:
V is the voltage, which is measured in volts,
I is the current, measured in amperes or amps,
R is the resistance, measured in ohms.
This equation is the backbone of Ohm's Law, which explains how to calculate any of the three values, whether voltage, current, or resistance, when two of the values are known.
<h3 dir="ltr">Explanation of the Formula of Ohm's Law</h3>
Let's break the Ohm's Law formula down into its parts so that we understand how it works.
1. Voltage (V): Voltage is the electrical force that pushes current through a conductor. It is measured in volts or V. For explanation purposes, think of voltage as the pressure that pushes water through a hose.
2. Current (I): Current is the flow of electric charge through a conductor. It is measured in amperes (A) or amps. Voltage would be the pressure if you will; current is the flow rate of the water.
3. Resistance (R): The resistance of a circuit component is the opposition to the flow of electric current through that component. The unit of measurement for resistance is the ohm (&Omega;). Resistance can be thought of as the size of the hose: the narrower it is, the greater the resistance; the wider, the lesser the resistance.
This formula, V = I &times; R, will help you figure out how much voltage is required to push a certain amount of current through a resistor with a certain resistance.
<h3 dir="ltr">Statement of Ohm's Law</h3>
We call Ohm's Law the relation expressed by the formula: $ V = I \times R $. This relation simply means that if you know any two of the three values of voltage, current, and resistance, then you can find out the third.
For example, if one knows that the resistor value is 10 ohms and the flowing current is 2 amps, then by using Ohm's law, it can give the voltage across the resistor:
\[ V = I \times R = 2 \, \text{A} \times 10 \, \Omega = 20 \, \text{V} \]
Thus, by Ohm's law, the resistor voltage will be 20 volts.
<h2 dir="ltr">Ohm's Law Definition</h2>
Ohm's Law can be stated most straightforwardly: it is a mathematical relationship that exactly describes how voltage, current, and resistance are related to each other in an electrical circuit. That relationship is stated as follows:
The current through any conductor is proportional to the voltage across the conductor.
It is inversely proportional to the resistance of the conductor.
That is to say, the higher the voltage, the higher the current would also be, if the resistance remains constant. Contrarily, the higher the resistance, the lesser the current would be, provided the voltage is kept constant.
<h2 dir="ltr">Practical Examples of Ohm's Law</h2>
In order to understand how Ohm's Law works in real life, let's have a look at a few practical examples:
1. Light Bulb: Suppose a light bulb has a resistance of 60 ohms and operates on 120 volts. Using Ohm's law to calculate the current flowing through the light bulb yields
$I = \frac{V}{R} = \frac{120 \, \text{V}}{60 \, \Omega} = 2 \, \text{A}$
Thus we have a current of 2 amps.
2. Resistor in a Circuit: Suppose you have a resistor with a resistance of 10 ohms and you would like to pass a current of 3 amps through it. You can therefore compute the needed voltage:
$$ V = I \times R = 3 \, \text{A} \times 10 \, \Omega = 30 \, \text{V} $$
Therefore, to push 3 amperes of current through a 10-ohm resistor, you must apply 30 volts across it.
<h2 dir="ltr">Ohm's Law in Different Circuits</h2>
Ohm's Law can be applied to different types of circuits. How this works:
1. Series Circuits: The various components in a series circuit are connected to one another in end-to-end fashion; hence, there is the same current passing through each component. The total resistance of the circuit is simply the sum of the individual resistances whereas the voltage across the entire circuit is simply the sum of the voltages across each component.
If you have three such resistors in series, their resistance to the flow of electric current is 5 ohms, 10 ohms, and 15 ohms respectively. The total resistance will be :
The current can then be worked out using the total resistance and the total voltage across the circuit.
\[ R_{\text{total}} = 5 \, \Omega + 10 \, \Omega + 15 \, \Omega = 30 \, \Omega
If the total voltage across the circuit is 60 volts, the current is
\[ I = \frac{V}{R_{\text{total}}} = \frac{60 \, \text{V}}{30 \, \Omega} = 2 \, \text{A}
2. Parallel Circuits: In a parallel circuit, components are connected across the same two points, so the voltage across each component is the same. The total current is the sum of the currents through each component, and the total resistance can be calculated by means of the following formula:
\[ \frac{1}{R_{\text{total}}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} \]
For resistors with resistances of 10 ohms, 20 ohms, and 30 ohms in parallel, the total resistance is:
&nbsp;&nbsp;&nbsp;\[ \frac{1}{R_{\text{total}}} = \frac{1}{10 \, \Omega} + \frac{1}{20 \, \Omega} + \frac{1}{30 \, \Omega} \]
&nbsp;&nbsp;&nbsp;\[ \frac{1}{R_{\text{total}}} = 0.1 + 0.05 + 0.0333 \approx 0.1833 \]
&nbsp;&nbsp;&nbsp;\[ R_{\text{total}} \approx \frac{1}{0.1833} \approx 5.45 \, \Omega \]
<h2 dir="ltr">Ohm&rsquo;s Law and Electrical Safety</h2>
The importance of understanding Ohm's Law is not only in designing and analyzing electrical circuits, but also in electrical safety. If applied appropriately, Ohm's Law will prevent overloading the circuits, causing electrical fires or equipment damage.
For instance, when one is designing a power supply circuit, he or she may select appropriate resistors that operate within their operational limits-heat generation-by the amount of voltage and current applied. A person will be able to determine a quantity of power dissipated by each resistor through Ohm's Law whereby he or she will select materials appropriately rated for expected power level.
<h2 dir="ltr">Historical Background of Ohm's Law</h2>
This law was originally developed in the early 1820s by a German physicist and mathematician named Georg Simon Ohm, who experimented with different electric circuits and arrived at the conclusion that voltage, current, and resistance bore a constant and dependable relationship to each other. He presented his findings in a famous book titled "Die galvanische Kette, mathematisch bearbeitet", which is generally now known as Ohm's Law.
Once Ohm's Law was presented, it received quite a lot of skepticism from the public; however, once it was confirmed and applied by more and more scientists and engineers, it finally won its place among other laws. Nowadays, the principle of Ohm's Law is considered a basic one at schools, and it found its place in great quantities of applications within electrical engineering.&nbsp;
<h2 dir="ltr">Modern Technology that Uses Ohm's Law</h2>
Resistance, voltage, and current are interrelated in such a manner that if two of the variables are known, then the third variable can easily be determined from it. Ohm's Law finds enormous application in modern technology and electronic devices. It is used to design simple circuits to complex electronic systems. It aids the engineers in the following ways:
1. Design Electrical Circuits: Engineers make use of Ohm's law in designing the circuit with the right voltage, current, and resistance values for its appropriate functioning.
2. Electrical System Analysis: The use of Ohm's Law allows the engineer to analyze and debug an electrical system by calculating the expected behavior of components.
3. Design Electronic Devices: The design of smartphones, computers, appliances, etc., requires that they be correctly and efficiently designed using Ohm's Law.&nbsp;
<h2 dir="ltr">Teaching Ohm's Law</h2>
Teaching Ohm's Law to students requires simplification of concepts and hands-on experiments that reinforce understanding. Following are some of the effective ways to teach Ohm's Law:
1. Visual Aids: &nbsp;Diagrams and charts may be used to give students an idea about the relationship between voltage, current, and resistance.
2. Conduct Experiments: Some simple experiments with batteries, resistors, and light bulbs can be carried out that would show how current changes by changing voltage and resistance.
3. Give examples in real life: Think about daily objects and situations to relate Ohm's Law to common household appliances and electronic devices.
<h2 dir="ltr">Conclusion</h2>
Ohm's Law is the very backbone of electrical engineering in physics, providing an easy yet powerful equation for describing how voltage, current, and resistance interact. By mastering Ohm's Law, students and professionals alike will be able to design, analyze, and troubleshoot electrical circuits with complete confidence.
From its historical roots to modern applications, Ohm's Law remains at the core of technology and education. In this future, digitally connected world, the place and role of Ohm's Law principles will be at the center as far as understanding and engineering of electrical systems are concerned.
<h2 dir="ltr">FAQs&nbsp;</h2>
<h3 dir="ltr">1. What is Ohm's Law?</h3>
Ohm's Law refers to that concept in electrical engineering and physics wherein the relationship is defined between voltage, current, and resistance in an electrical circuit. According to Ohm's Law, the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance. The formula for Ohm's Law is $ V = I \times R $, where $ V $ is the voltage, $ I $ is the current and $ R $ is the resistance.
<h3>2. How is Ohm's Law used in electrical circuits?</h3>
Ohm's Law provides a description of how electric circuit measurements for voltage, current, and resistance are calculated. It is thus easy to apply Ohm's Law when either the voltage or resistance in the case of a circuit is already known to get current, and in the same way, if the current and the resistance are known, it is easy to calculate voltage through Ohm's Law. Engineers and electricians use and apply Ohm's Law in establishing circuits, tracing problems related to electricity so that electronic equipment can operate as one wants.
<h3 dir="ltr">3. Does Ohm's Law apply to all materials?</h3>
Though Ohm's law can be applied to a lot of materials and many circuits, it does not apply to all materials. That is, some materials - ohmic-are those to which Ohm's Law is not applicable because their resistance changes with variation in voltage or current. Examples include semiconductors, diodes, and some types of sensors. Other models and equations will be used to describe their behavior.
Liked what you read? Feel free to share this article with your friends and spread the knowledge!
